Nvidia ConnectX-6 VPI Card
Lead Time 7–9 days
$1,628.00
ConnectX-6 Single/Dual-Port Adapter Supporting 200Gb/S With VPI
Intelligent ConnectX-6 adapter cards, the newest additions to the Mellanox Smart Interconnect suite and supporting Co-Design and In-Network Compute, introduce new acceleration engines for maximising High Performance, Machine Learning, Web 2.0, Cloud, Data Analytics and Storage platforms.
Payment options
- Bank transfer
Delivery options
- Pickup
- National Delivery
- International
Request a tailored price quote
Enter your details below
A sales representative will contact you within 24 hours.

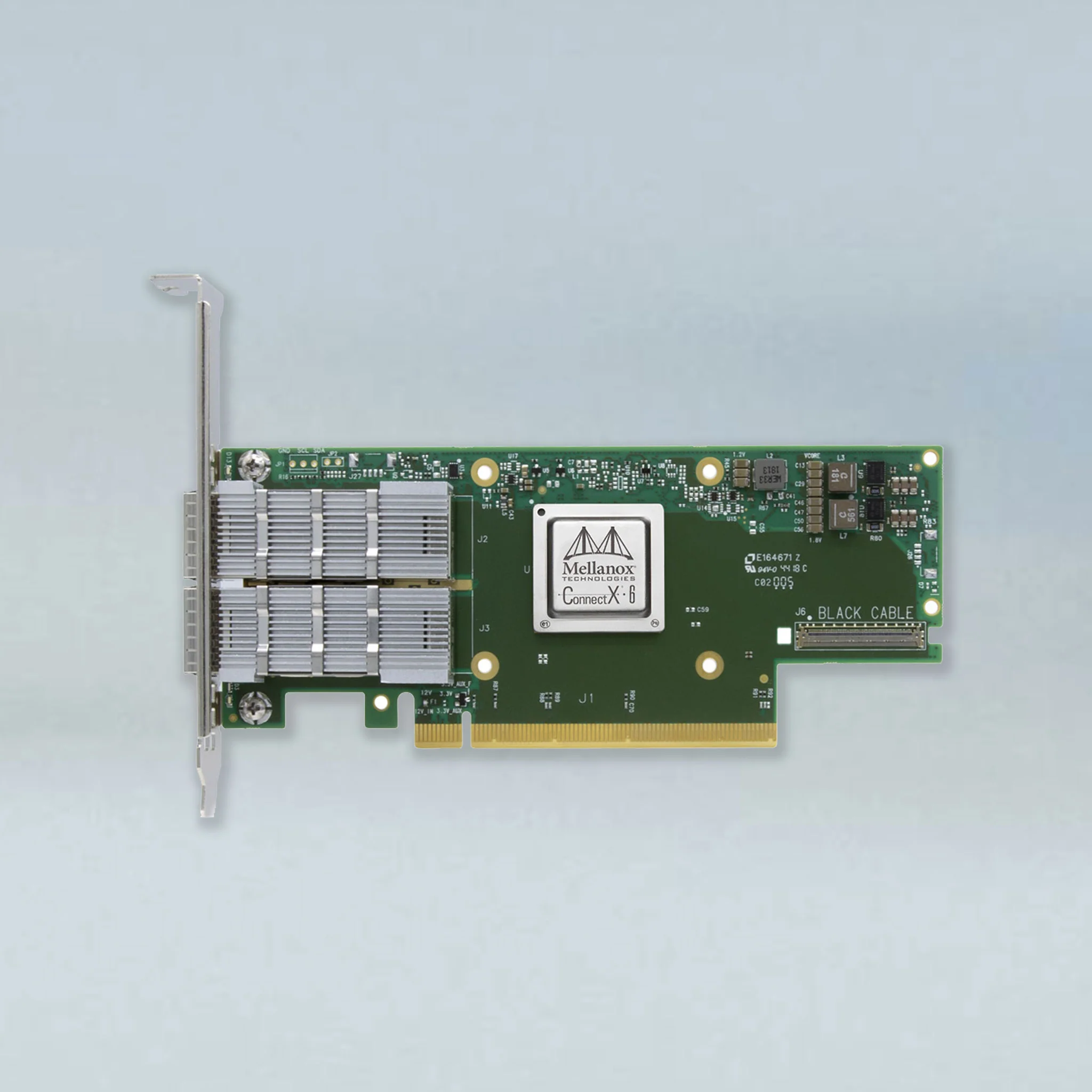

Mellanox ConnectX®-6 VPI Adapter
Dual-Port Adapter Card supporting 200Gb/s with Virtual Protocol Interconnect
ConnectX-Virtual Protocol Interconnect® (VPI) is a groundbreaking addition to the Mellanox ConnectX
series of industry-leading adapter cards. Providing up to two ports of 200Gb/s for InfiniBand and Ethernet
connectivity, sub-600ns latency and 215 million messages per second, ConnectX-6 VPI enables the
highest performance and most flexible solution aimed at meeting the continually growing demands of
data center applications.
In addition to all the existing innovative features of past versions, ConnectX-6 offers a number of
enhancements to further improve performance and scalability.
ConnectX-6 VPI supports up to HDR, HDR100, EDR, FDR, QDR, DDR and SDR InfiniBand speeds as well as up to 200, 100, 50, 40, 25, and 10Gb/s Ethernet speeds.
Benefits
- Industry-leading throughput, low CPU utilization and high message rate
- Highest performance and most intelligent fabric for compute and storage infrastructures
- Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
- Mellanox Host Chaining technology for economical rack design
- Smart interconnect for x86, Power, Arm, GPU and FPGA-based compute and storage platforms
- Flexible programmable pipeline for new network flows
- Cutting-edge performance in virtualized networks, e.g., NFV
- Efficient service chaining enablement
- Increased I/O consolidation efficiencies, reducing data center costs & complexity
Key Features
- Up to 200Gb/s connectivity per port
- Max bandwidth of 200Gb/s
- Up to 215 million messages/sec
- Sub 0.6usec latency
- Block-level XTS-AES mode hardware encryption
- FIPS capable
- Advanced storage capabilities including block-level encryption and checksum offloads
- Supports both 50G SerDes (PAM4) and 25 SerDes (NRZ)-based ports
- Best-in-class packing with nsubnanosecond accuracy
- PCIe Gen3 and PCIe Gen4 support
- RoHS-compliant
- ODCC-compatible
Manufacturer Warranty
1 Year
